Porting sel4 on RISCV architecture

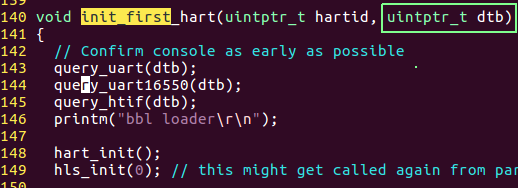

Hi Experts, This is Sathya from IIT Madras. We are working on porting SEL4 on RISCV architecture running on FPGA. We have ported linux on the FPGA. I have some doubts regarding OS porting. I am stuck at the end. Before my actual query, let me tell my platform. Hardware - 64 bit RISCV design running on FPGA. It doesn't support compressed instn and multiarch. Operating system - SEL4, repo synced from latest official repository. Tools - Latest synched from RISCV official repo. Query - I simulated sel4test on spike and then I am trying to port it on FPGA. We have UART to be mapped to 0x11400 address location. I set scan->reg to this value. I understood, incase of simulation, the DTB argument passed to init_first_hart function comes from spike simulator (file - sim.cc). Now, for FPGA I want to pass the DTB value to the init_first_hart() function. I am planning to write a DTS file and somehow read the data from DTS file here. I am trying to know, what is the right method to do for SEL4 ? Can you please let me understand, how you went ahead for SEL4 ? Is there any changes, I have to do in the repo code ? any readings would you suggest to proceed ahead ? -- regards, Sathya
